HEAVY DUTY LIFTING/FIXING SOCKETS
Heavy-duty lifting and fixing involve tasks that require strength, durability, and specialized equipment to move, install, or secure large, heavy, or complex objects. This type of work typically includes operations such as lifting machinery, structural components, building materials, or industrial equipment, often in construction, manufacturing, and repair settings. It requires the use of cranes, hoists, forklifts, and other heavy machinery to safely handle and position loads.
Application

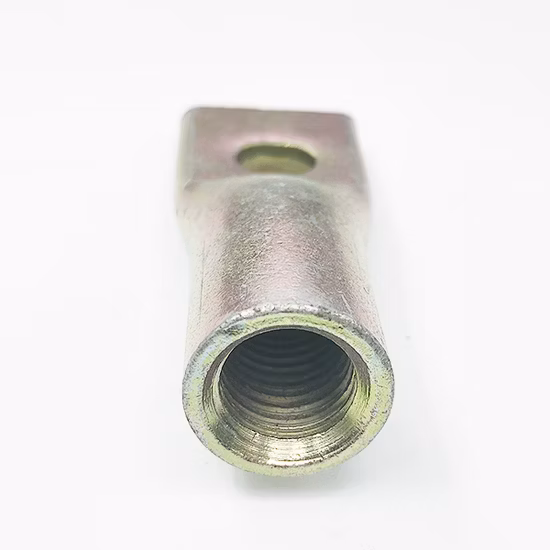

Heavy duty lifting/ fixing sockets for high tensile and shear load. widely used in the application of precast concrete construction, such as lifting beams,wall and floor slabs etc.A Reinforcement bar is to be inserted through the cross hole of transfer the load into the concrete.
- HIncreased Efficiency: Speeds up the handling of large items, reducing work time.
- Enhanced Safety: Reduces the risk of injury by using equipment instead of manual labor.
Material
High Strength solid bar, galvanized, stainless steel avaiable on request
| Description | SWL (kg) | Dimmension L(mm) | |
|---|---|---|---|
| M10 * 42 | 600 | 42 | |
| M12 * 50 | 900 | 50 | |
| M12 * 75 | 900 | 75 | |
| M16 * 75 | 1,700 | 75 | |
| M20 *75 | 2,300 | 75 | |
| M24 * 100 | 3,000 | 100 |
